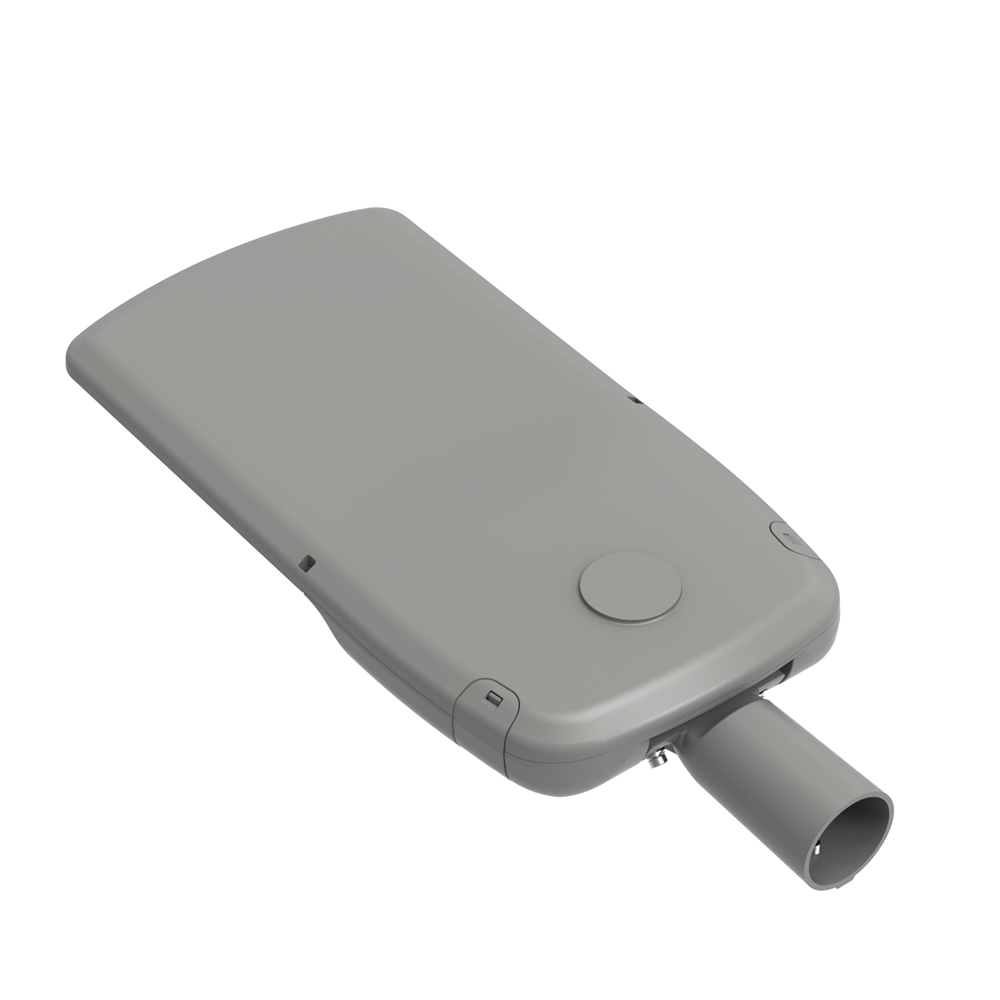

  • energy saving led street lights fixtures high lumen

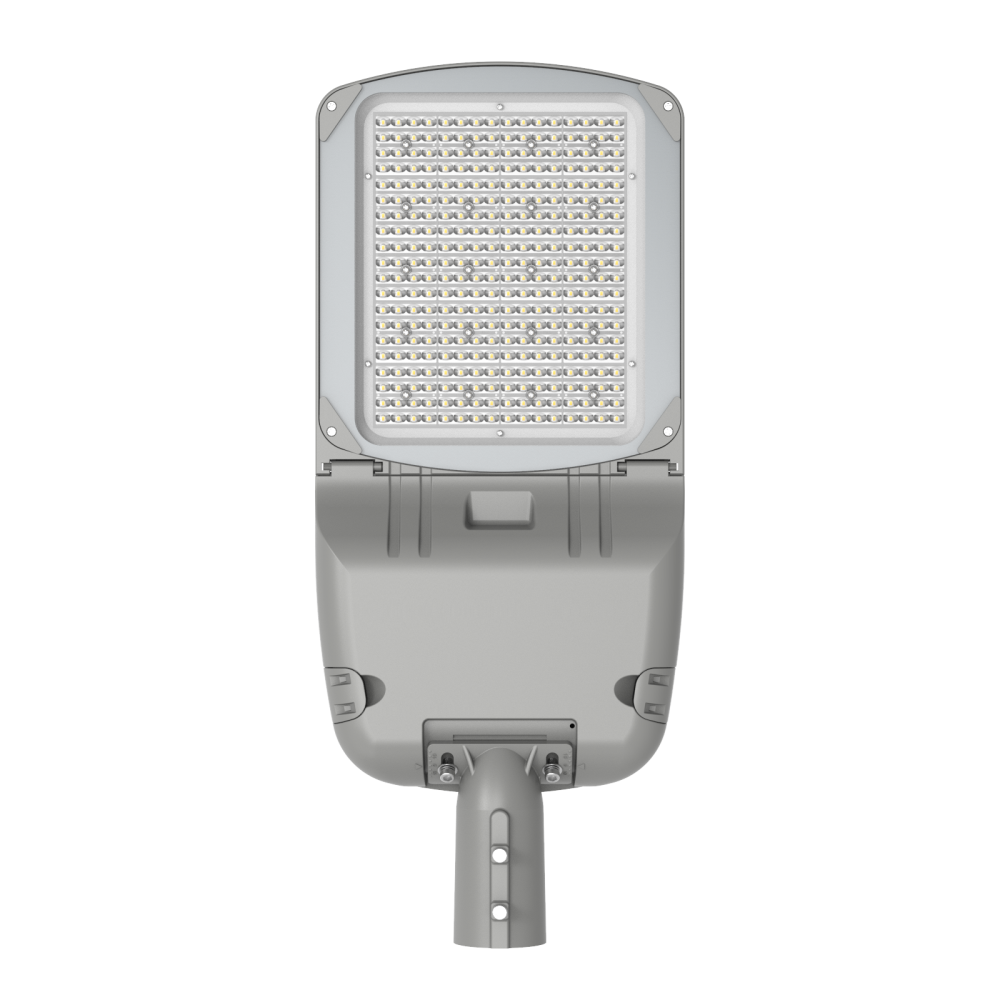

  • intelligent led street light with Adjustable bracket
  • A series LED Street Light with bracket

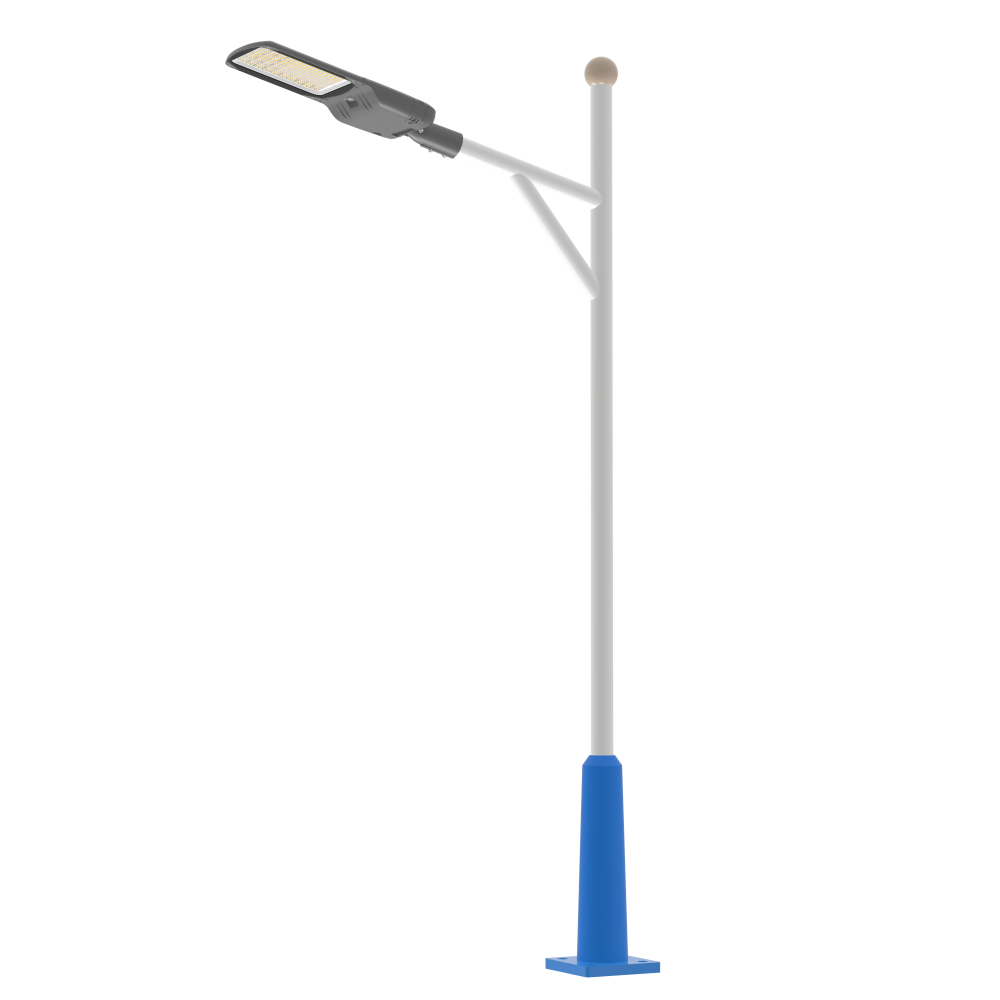

  • LED Street Light head for city road lighting system

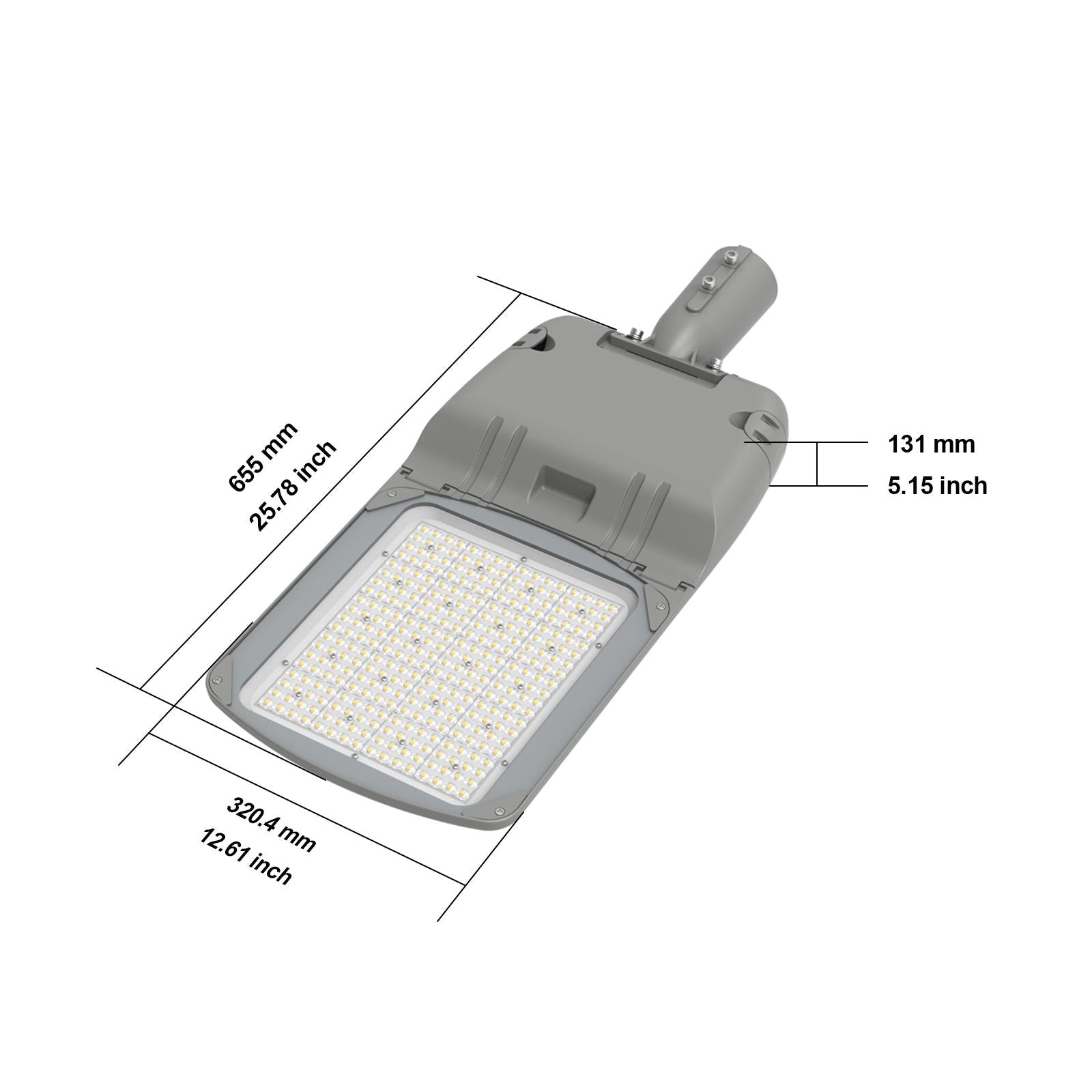

  • Dimensions of LED street light fixture SMD LED + LENS style

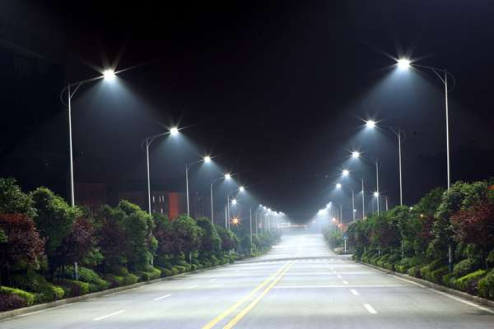

  • Streetlights illuminating with Easeking produced High brightness LED Street Light
1 13

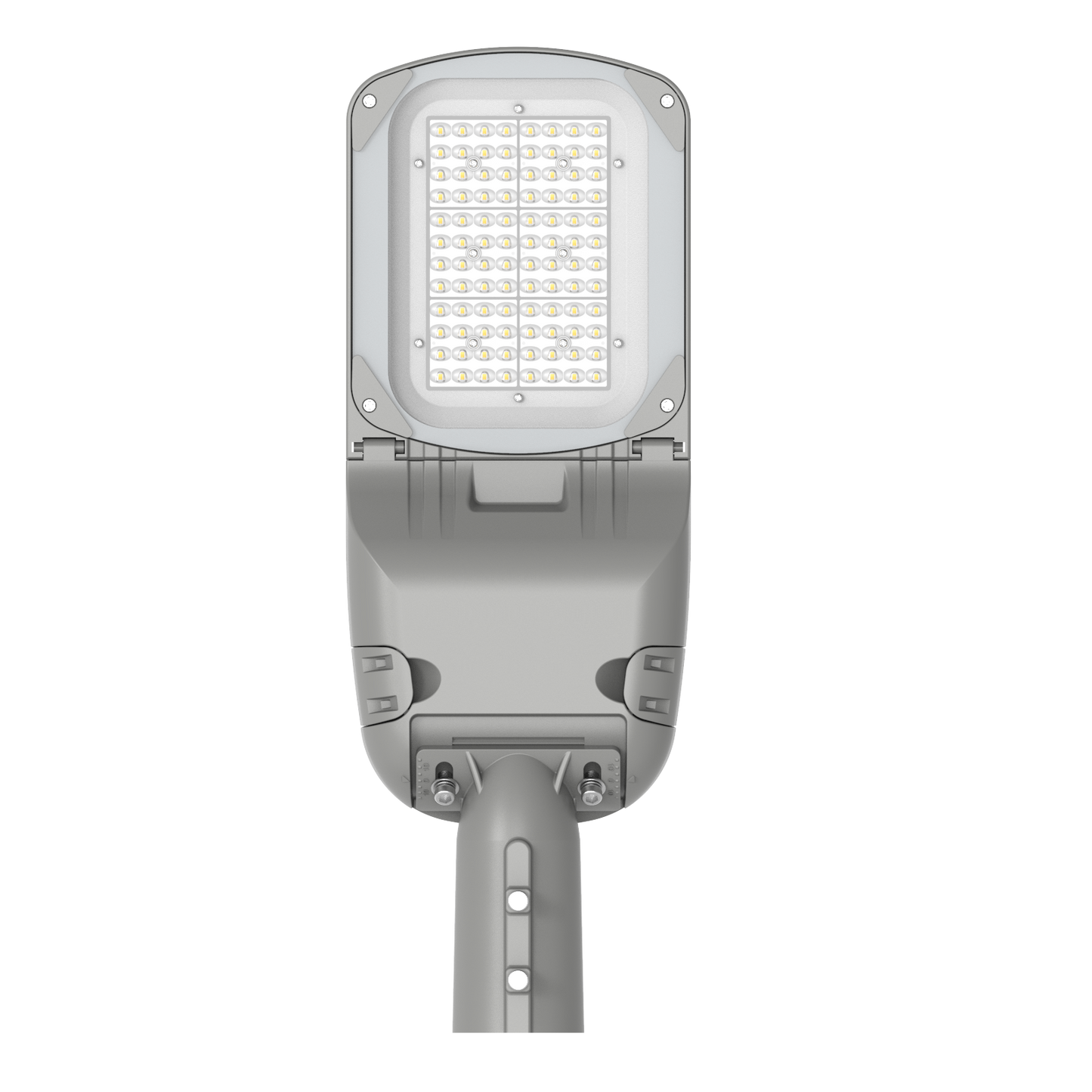

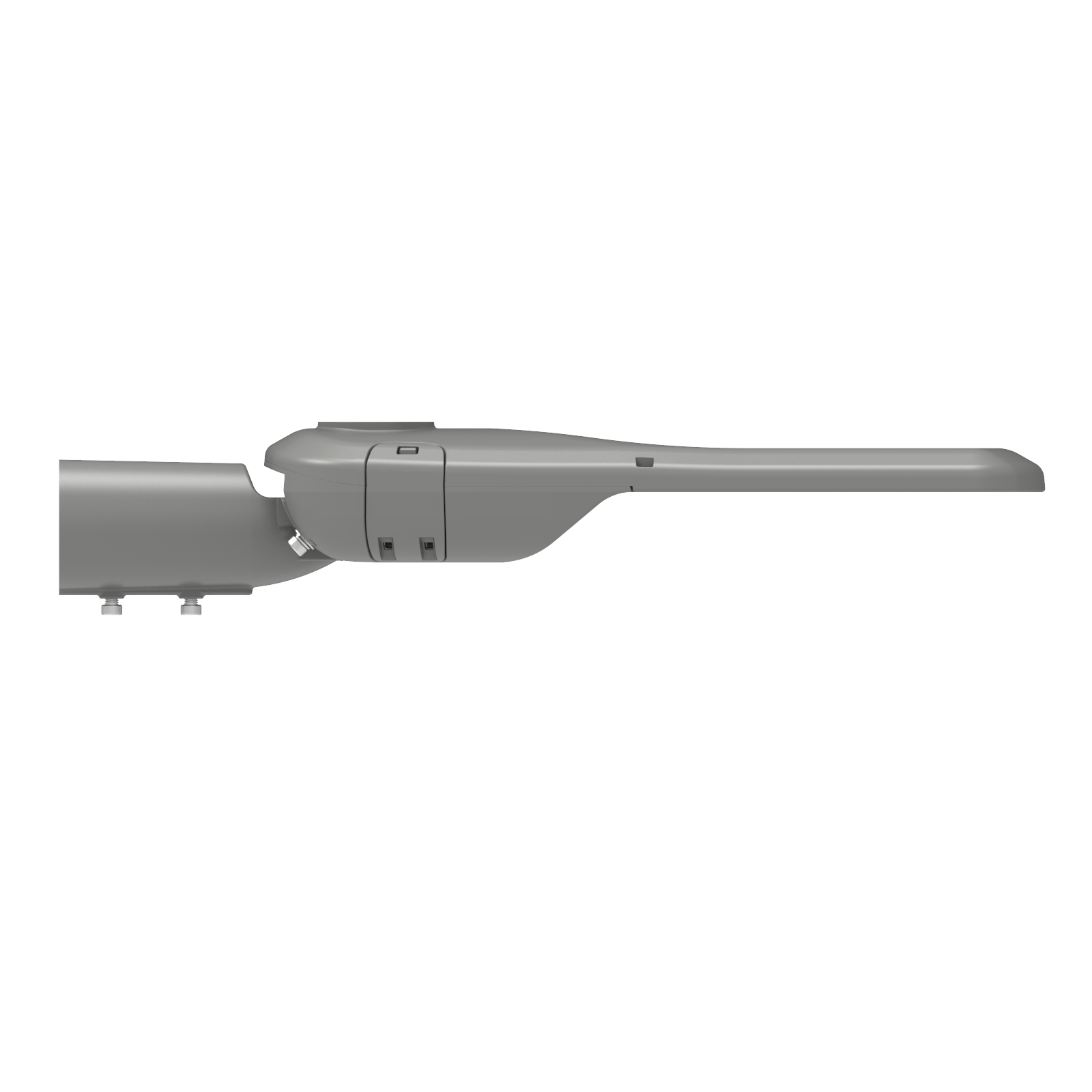

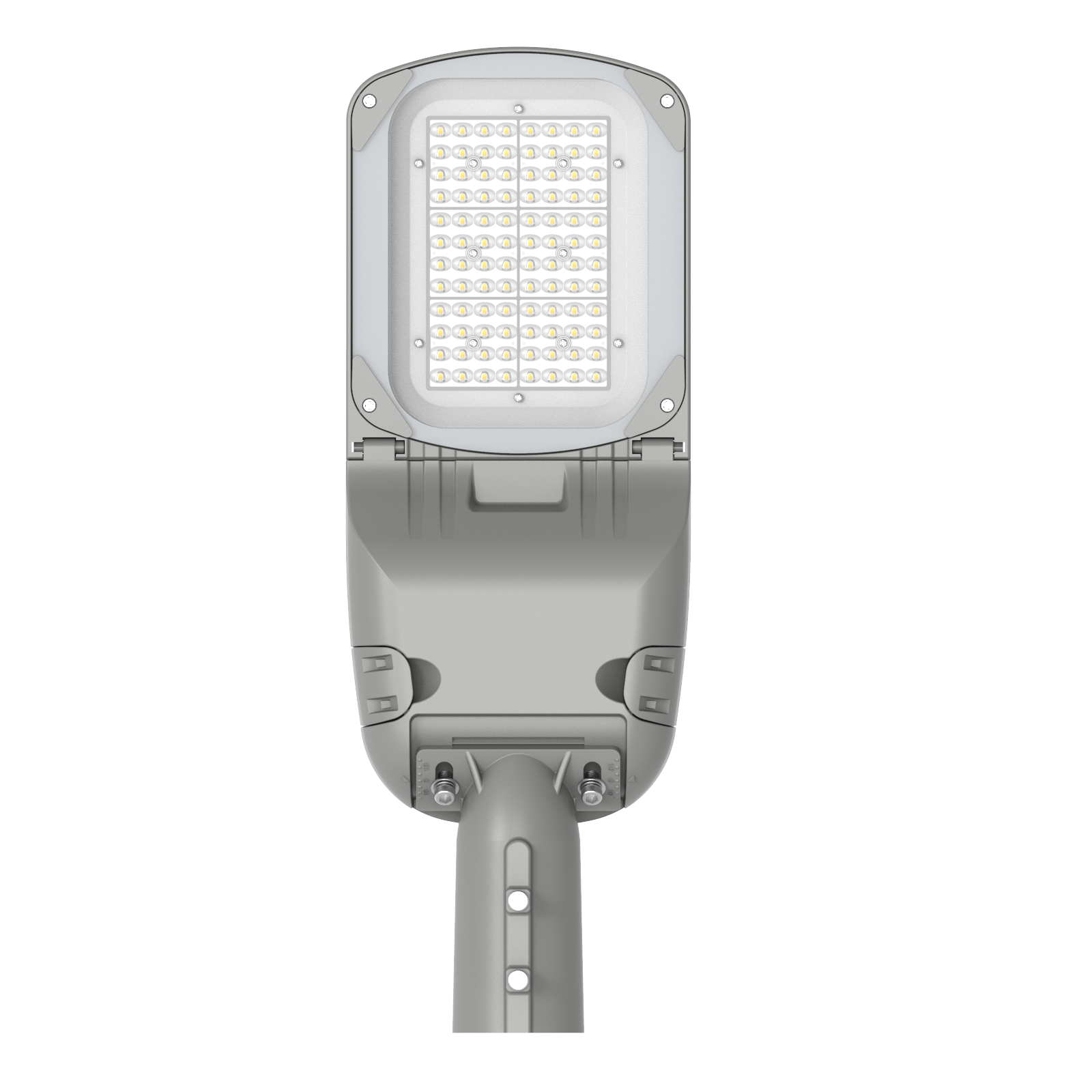

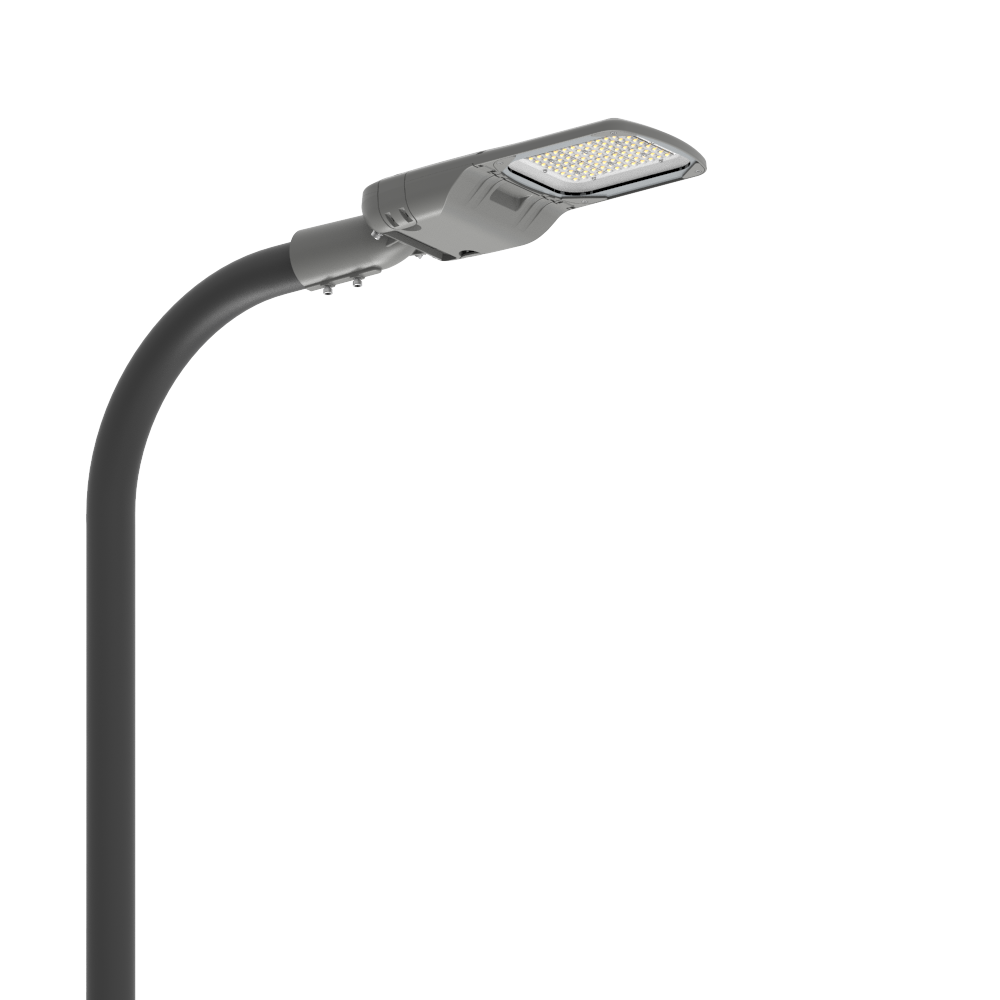

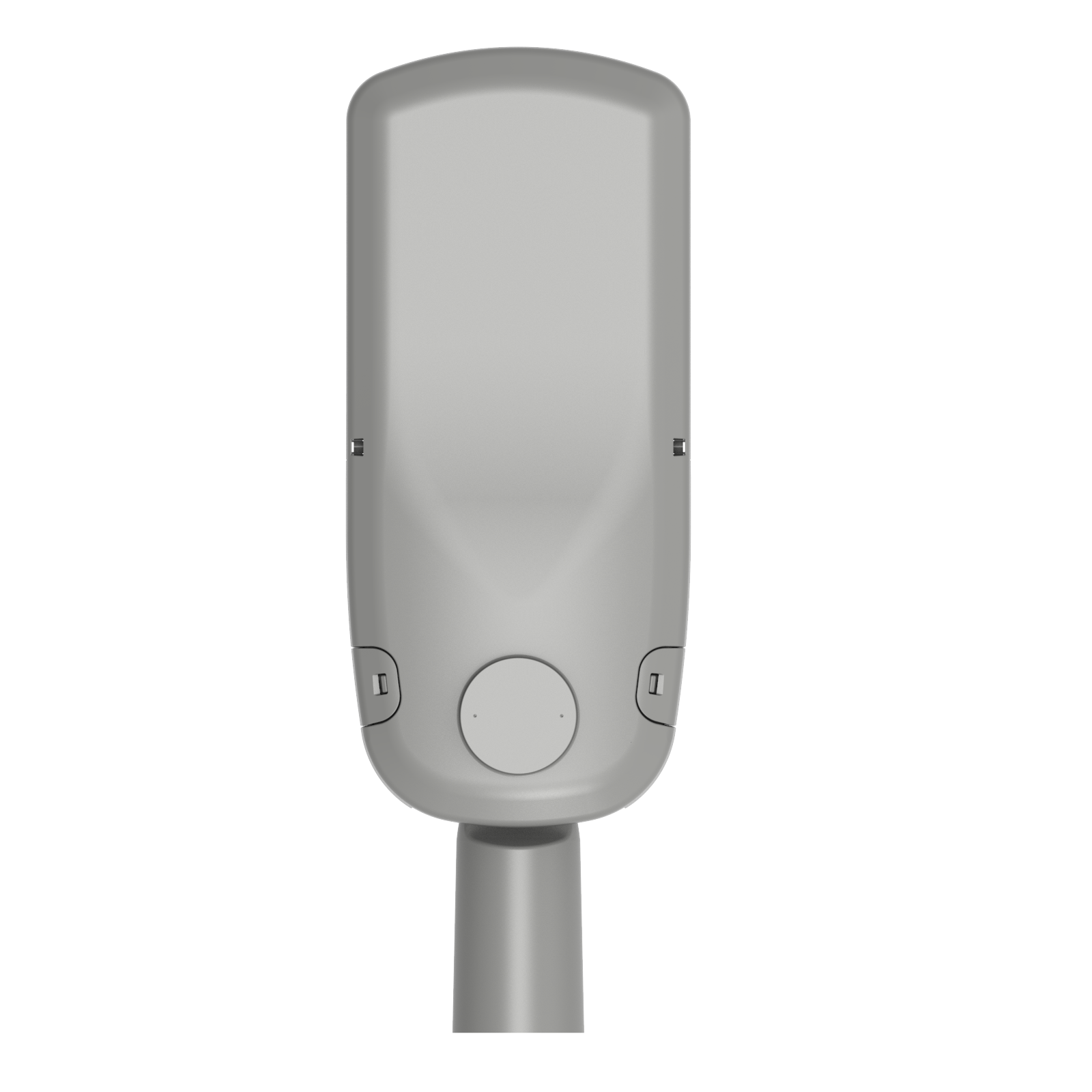

Easeking ESL20 Series 200W LED Street Light - 30,000 Lumens, IP66, 120-277V

Easeking ESL20 Series 200W LED Street Light - 30,000 Lumens, IP66, 120-277V

$99.90 USD
$59.00 USD $99.90 USD
Sale Sold out

Easeking ESL20 Series 200W LED Street Light delivers ultra-high luminous output (150 lm/W, 30,000 lumens) engineered for wide municipal roadways, major intersections, large commercial parking lots, logistics centers, and industrial facilities. Built with heavy-duty die-cast aluminum housing and advanced optical distribution, it provides maximum area coverage, superior energy efficiency, and low-maintenance longevity.

Key Features & Benefits

  • Ultra-High Output & Efficiency: Delivers 30,000 lumens at 150 lm/W with excellent color fidelity (CRI > 80) and high power factor (PF > 0.95).
  • Heavy-Duty Heat Dissipation: Robust die-cast aluminum housing with integrated thermal management fins ensures rapid heat dissipation and extends driver and LED lifespan.
  • High-Transmittance Optical PMMA Lens: Engineered with 93% light transmittance for uniform, glare-controlled illumination across wide coverage areas.
  • All-Weather Protection: Rated IP66 waterproof and IK08 impact-resistant, engineered to operate in extreme weather conditions from -40°F to 140°F (-40°C to 60°C).
  • Built-in Surge Protection: Standard 10kA surge protection safeguards against power spikes, line fluctuations, and lightning strikes.

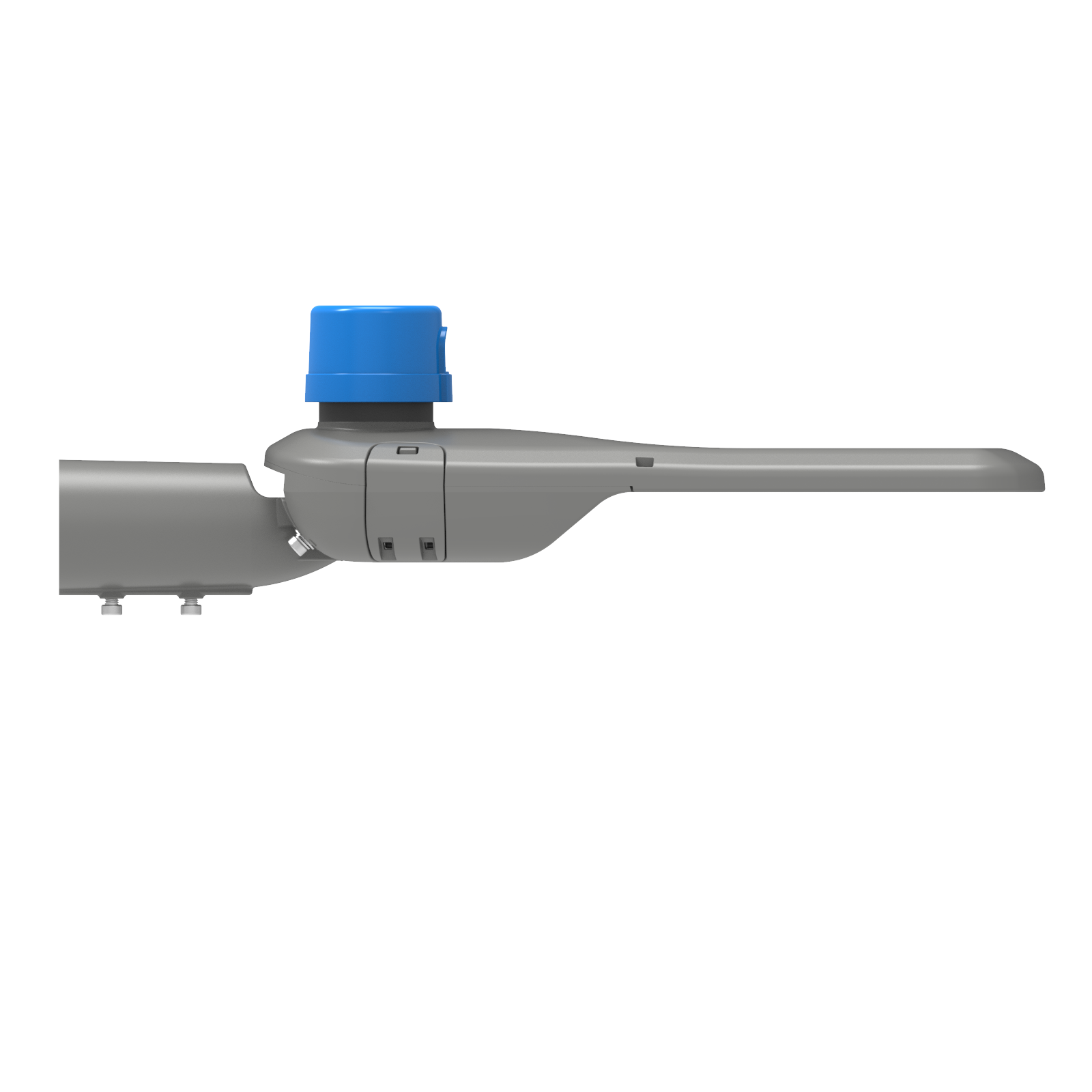

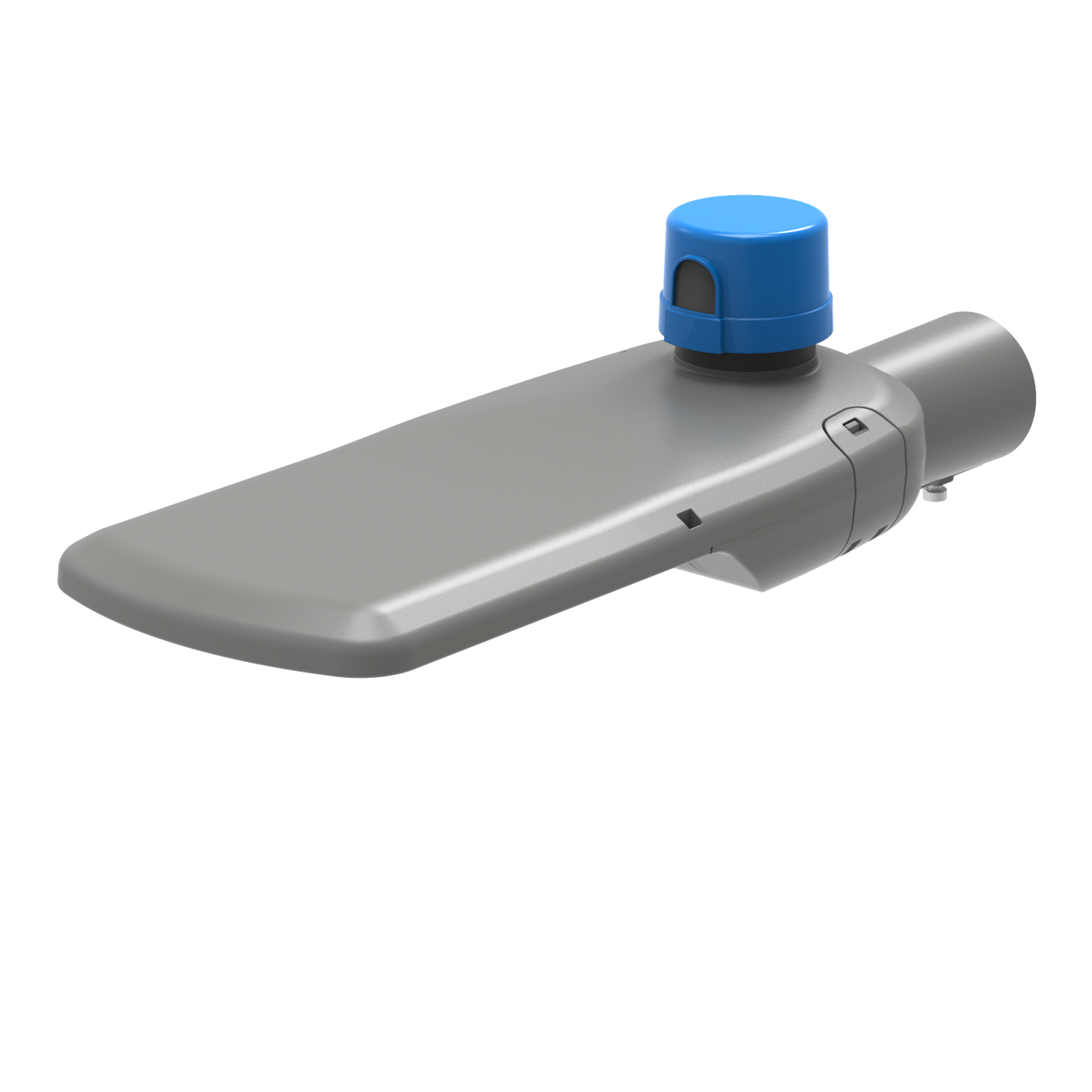

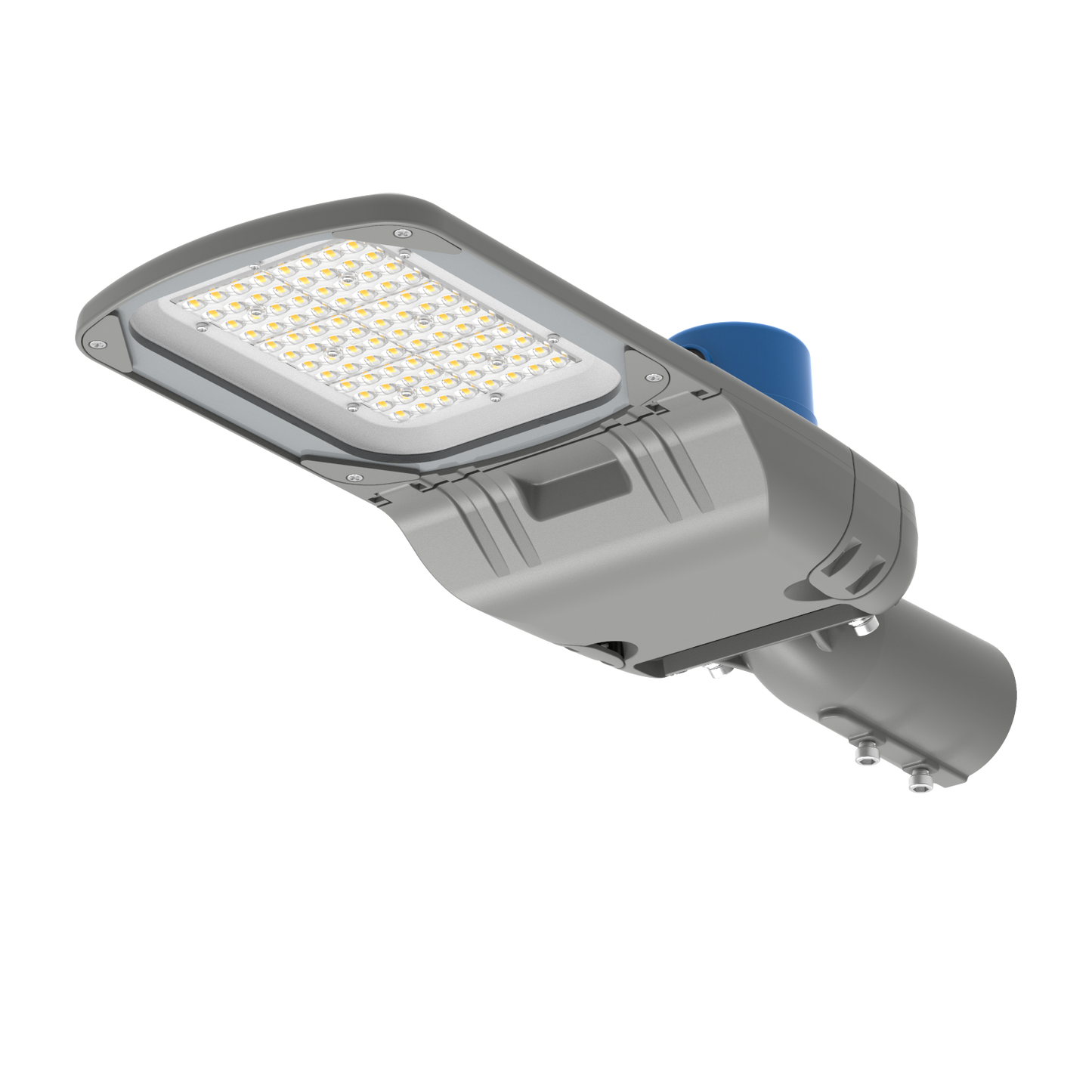

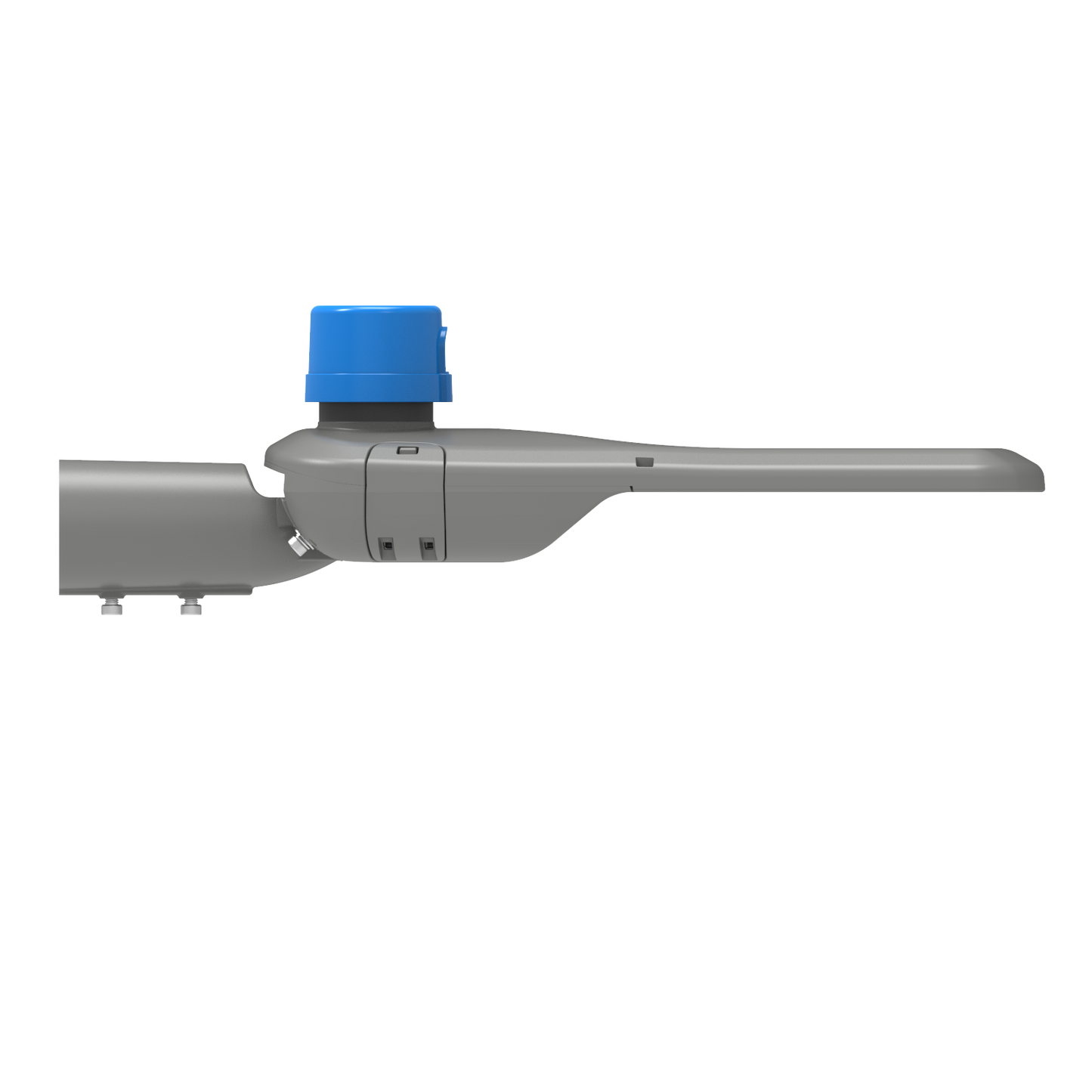

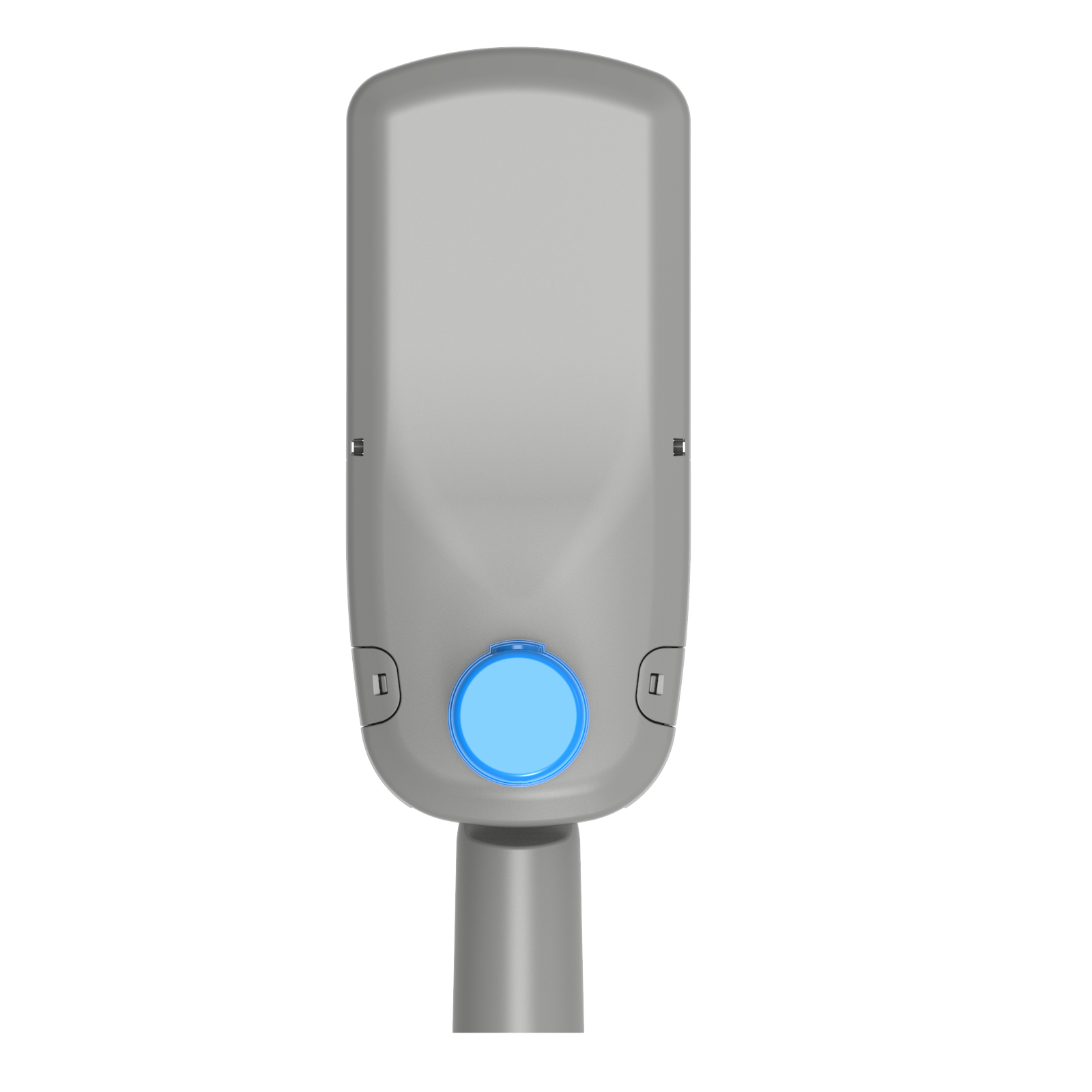

  • Smart Controls: Available with optional daylight photocell sensor or microwave motion sensor for automated dusk-to-dawn operation and maximum energy savings.

Technical Specifications

  • Wattage: 200W
  • Luminous Output: 30,000 Lumens
  • Luminous Efficacy: 150 lm/W
  • Input Voltage: 120–277V AC, 50/60Hz
  • Color Rendering Index (CRI): > 80
  • Power Factor: > 0.95
  • Ingress & Impact Ratings: IP66 & IK08
  • Surge Protection: 10kA standard
  • Dimming: 0–10V Dimmable
  • Finish Options: Durable powder-coat finish in Black, Gray, or Bronze

Dimensions & Weight

  • Fixture Dimensions: 712 × 300 × 98.5 mm (approx. 28.0"L × 11.8"W × 3.9"H)
  • Fixture Weight: 5.8 kg (12.78 lbs)
  • Package Size: 745 × 330 × 160 mm
  • Package Weight: 6.4 kg (14.10 lbs)

Recommended Applications

  • Multi-lane roadways, highways, and public boulevards
  • Large commercial parking lots and auto dealerships
  • Logistics hubs, ports, and intermodal distribution centers
  • Industrial complexes, manufacturing plants, and refineries
  • Municipal plazas, sports centers, and perimeter security

Warranty & Support

  • 5-Year Limited Warranty: Comprehensive commercial warranty coverage.
  • Dedicated Technical Support: Easeking provides photometric lighting layout assistance and technical support for engineering contractors and commercial projects.
